Turning Data into High Value
EXRAY
PROACTIVE MANAGEMENT OF SUBMERGED ASSET INTEGRITY
EXRAY IS CLASS CERTIFIED FOR VISUAL AND NDT DATA COLLECTION
Ultimate Agility
With 6 degrees of freedom and a wireless flyout option, EXRAY™ offers exceptional maneuverability, reducing inspection mission time and collecting data where others cannot reach.
Intuitive Control
All professional features into a compact design, allowing for numerous payload integrations, all of which can be seamlessly controlled through the intuitive NAVIA™ User Interface.
Powerful AI Engine
EXRAY™ hosts a powerful computer that learns as you go. It also assists with a live navigation map and data collection offering fast and reliable results each time.
Data Quality
& Reporting
In the end, it's all about data. With NAVIA™+ data management suite, EXRAY™ helps organise raw data into instant reports with geo-tagged POIs captured in crystal-clear undistorted FHD video and 4K images.
PAYLOADS
Tailored Solution
for your Mission's Success
EXRAY™ features a versatile modular payload connectors that support a wide range of industry-standard sensors. Most of the sensors are fully integrated into the NAVIA™ UI. This allows it to automatically detect new payloads and display data directly on the pilot screen, reducing the mission’s clutter and complexity.
Ultimate Agility
With 6 degrees of freedom and a wireless flyout option, EXRAY™ offers exceptional maneuverability, reducing inspection mission time and collecting data where others cannot reach.
CUT THE CORD
Feel The Freedom
EXRAY™ ROV can optionally be enhanced with a FLYOUT that runs just as a regular ROV, except it's wireless. FLYOUT uses LUMA™ technology to operate up to 30 meters (100ft) away from the tethered ROV, which becomes a communication relay.
This setup improves maneuverability, reduces inspection time and eliminates tether entanglement risks in complex flooded spaces. It also leads to untethered residency of a robot.
_PNG.png)
Intuitive Control
All professional features into a compact design, allowing for numerous payload integrations, all of which can be seamlessly controlled through the intuitive NAVIA™ User Interface.
Powerful AI Engine
EXRAY™ hosts a powerful computer that learns as you go. It also assists with a live navigation map and data collection offering fast and reliable results each time.
Data Quality
& Reporting
In the end, it's all about data. With NAVIA™+ data management suite, EXRAY™ helps organise raw data into instant reports with geo-tagged POIs captured in crystal-clear undistorted FHD video and 4K images.
FEATURES
All You Need
and Even More
FHD quality videos
and 4K images
Versatile
payload
Up to 6 hours
of battery life
Man-portable and
check-in-ready
Hub-less thrusters,
no tangling
Exceptional situational awareness
Automated
reporting
Highly
maneuverable
IMPROVE YOUR INSPECTION WORKFLOWS
Get Better Data Faster
*Compared to a human entry
10x
Lower Cost to Deploy*
5x
Faster Time to Result*
0%
Safety Risks*
NAVIA™ MISSION PLATFORM
Empowering Precise and Efficient
Underwater Inspections
NAVIA™ is your trusted co-pilot during the most challenging dives. NAVIA™ hosts a uniquely intuitive user interface and tools that significantly improve the pilot’s situational awareness. What’s more, NAVIA™+ data management suite takes your collected raw data and turns it into insightful visual datasets that asset owners will derive high value from.
CUT THE CORD
Feel The Freedom
EXRAY™ ROV can optionally be enhanced with a FLYOUT that runs just as a regular ROV, except it's wireless. FLYOUT uses LUMA™ technology to operate up to 30 meters (100ft) away from the tethered ROV, which becomes a communication relay.
This setup improves maneuverability, reduces inspection time and eliminates tether entanglement risks in complex flooded spaces. It also leads to untethered residency of a robot.
PAYLOADS
Tailored Solution
for your Mission's Success
EXRAY™ features a versatile modular payload connectors that support a wide range of industry-standard sensors. Most of the sensors are fully integrated into the NAVIA™ UI. This allows it to automatically detect new payloads and display data directly on the pilot screen, reducing the mission’s clutter and complexity.
A Professional Inspection System that Fits in a Backpack
TESTIMONIALS
What Our Clients Say
"EXRAY™ saves cost and eliminates human risks compared to human entry into dangerous confined spaces. Compared with our robotics solutions, EXRAY™ allows us to perform inspections at least twice as fast due to its exceptional purpose-built design."
COO
Air Control Entech
"EXRAY™ has the potential to save millions of dollars in plant shutdown costs by allowing us to proactively manage the integrity of the cooling towers."
Plant Manager
DOW
"EXRAY is now routinely deployed as a key part of our tank inspection toolkit. I am pleased with the quality of data it allows us to collect on our critical assets and demonstrates that it can reduce the need for manned entries to complex confined spaces."
Senior Naval Architect & Floating Units Integrity Lead Engineer
TotalEnergies
“When you add its digital management and wireless operational capabilities, every operator with water tanks, cooling tower pools and other submerged infrastructure should consider making EXRAY inspections part of its normal services.”
CEO
Crestone NDT
FAQ
The EXRAY™ ROV weighs 9 kg (20 lbs) and has a width of 13.4 cm (5 ¼”).
Typical endurance is 6 hours and each battery takes approximately 40 minutes to charge.
Preliminary specification; may change without notice.
The tether supplied with EXRAY™ is a 100 m (328 ft) twisted copper pair (ruggedized) with a 4 mm (0.16 in) diameter. The tether can be extended up to 300 m (985 ft) optionally. Longer trajectories can be performed with a single-mode fiber-optic tether up to 2,000 m (6,516 ft) (custom order, contact us directly).
Customizations are available upon request.
EXRAY™ is certified to operate at depths of down to 100m (328ft) and in temperatures of 0-40°C (32-104°F).
EXRAY™ can achieve speeds of up to 2 knots (1m/s) in both directions.
Preliminary specification; may change without notice.
EXRAY™ includes 16GB of internal memory and a slot for a microSD card up to 256GB.
EXRAY™ features a high-quality rotating camera for full high-definition videos and 4k images with 2.5x - 3x optical zoom. The camera is capable of taking sharp images at ultra-short distances — even if the EXRAY™ dome touches the surface, for clear crack images even in the most murkeiest of waters.
EXRAY™ features a high-quality rotating camera for full high-definition videos and 4k images with 2.5x - 3x optical zoom. The camera is capable of taking sharp images at ultra-short distances — even if the EXRAY™ dome touches the surface, for clear crack images even in the most murkeiest of waters.
More sensors can be added upon request.

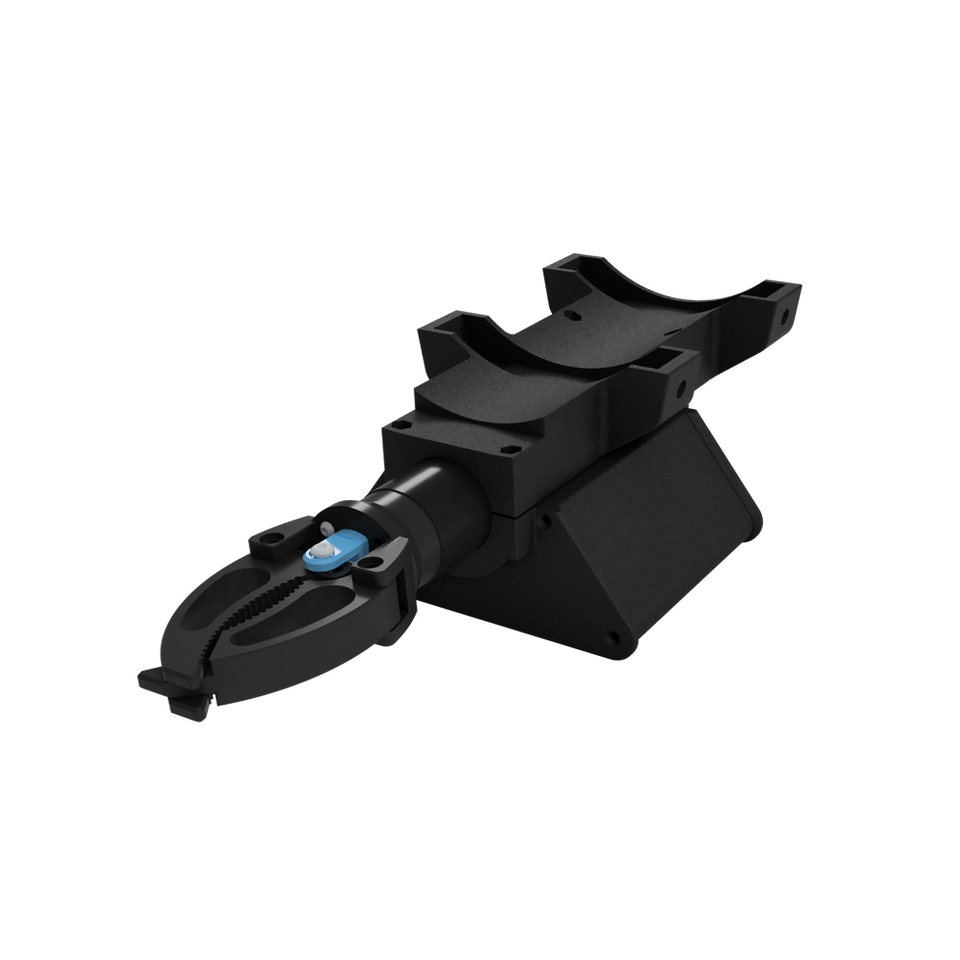

Optional payloads include an EXRAY™ FLYOUT, gripper, UTM Sensor, DVL, Scanning imaging Sonar, Multi-beam Sonar, and SPEERA™ Vacuum Cleaner and more.
Compatibility with a growing range of payloads is added continuously.
Please inquire with us directly.
The EXRAY™ PILOT STATION runs on NAVIA™, an intuitive control management platform for pilots.
NAVIA™+ offers powerful data management tools, enabling easy creation of inspection reports and seamless integration of various payloads, making subsea operations more efficient and streamlined, saving post-processing time and report preparation. In the near future, NAVIA+ will also generate 3D datasets to provide digital twins of the submerged physical assets.
No, at present PILOT station is a dedicated EXRAY™ hardware that has a powerful computer to manage high volume of data for professional inspections of assets.
Yes, the EXRAY™ PILOT STATION has an IP68 rating when closed, and an IP44 when open. The operating temperature range is 0-40°C (32-104°F).
The PILOT station weighs 8kg (18 lbs), the INSPECTOR station, 7kg (15 lbs).
SPEERA™ Vacuum Cleaner is an optional payload that turns the EXRAY™ ROV into a powerful underwater hoover for cleaning light sediment from the bottom of tanks. It is sold separately but is seamlessly integrated into NAVIA™ UI.
